PROJECT INFO
- Category: Personal project
- Date: Fall 2019
- Skills: PCB Design, Circuit Board Milling, Soldering, 3D Modeling, 3D Printing
a DIY gaming console
The AltoidBoy is a personal project I began simply because it seemed fun! It is based off the Arduboy, a credit-card sized gaming device that can be bought commercially. However, because it is open-source and based on the Arduino Micro, the Arduboy has a community of people who have created homemade versions, and I decided I wanted to be one of those people, and fit my Arduboy in an Altoids tin.
research, initial testing
After reviewing online resources I ordered the electrical components I would need, and started by connecting everything together temporarily on a breadboard. To do so I had to translate a factory schematic of the official Arduboy into something I could reference.

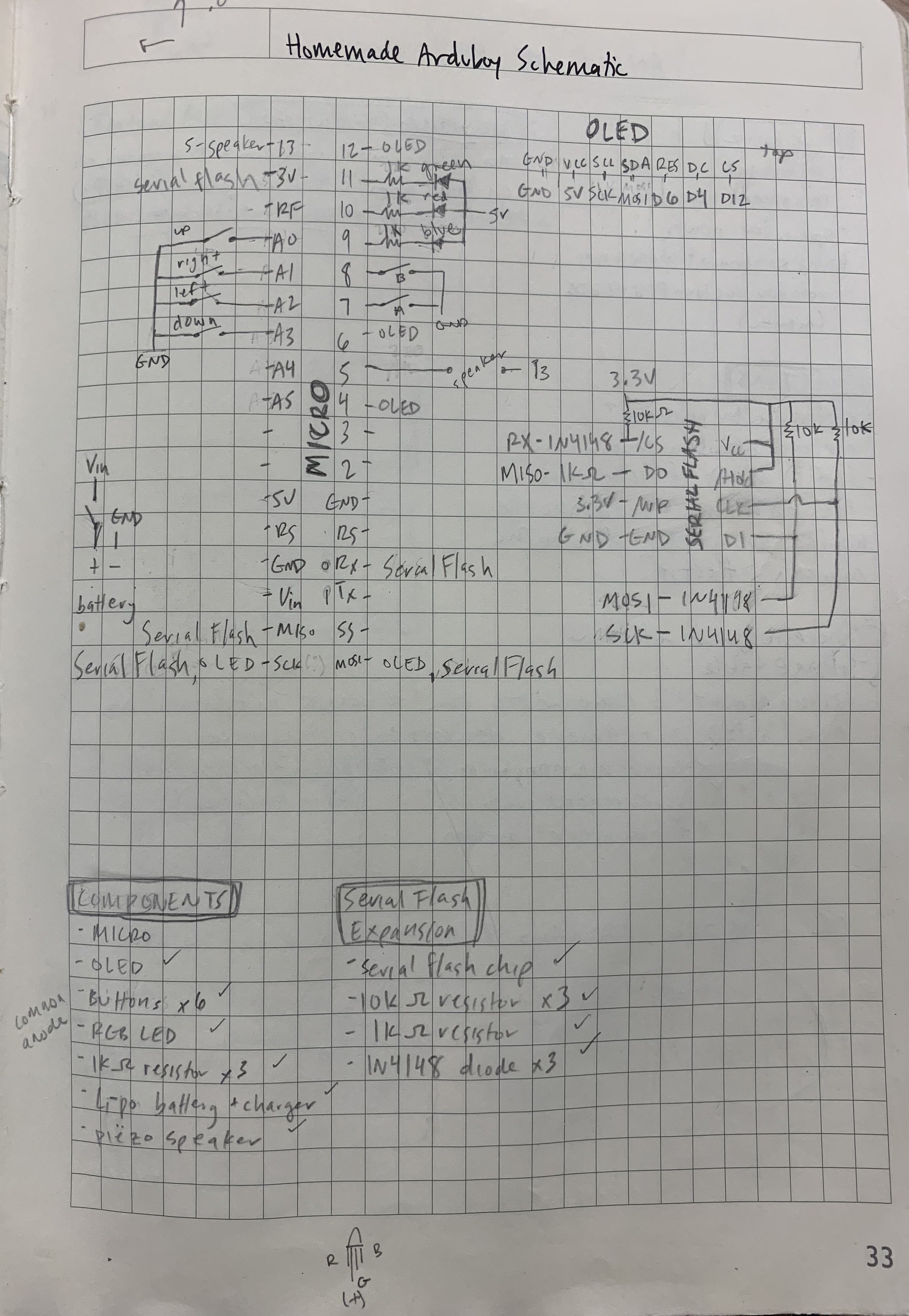

My version of the circuit schematic. |

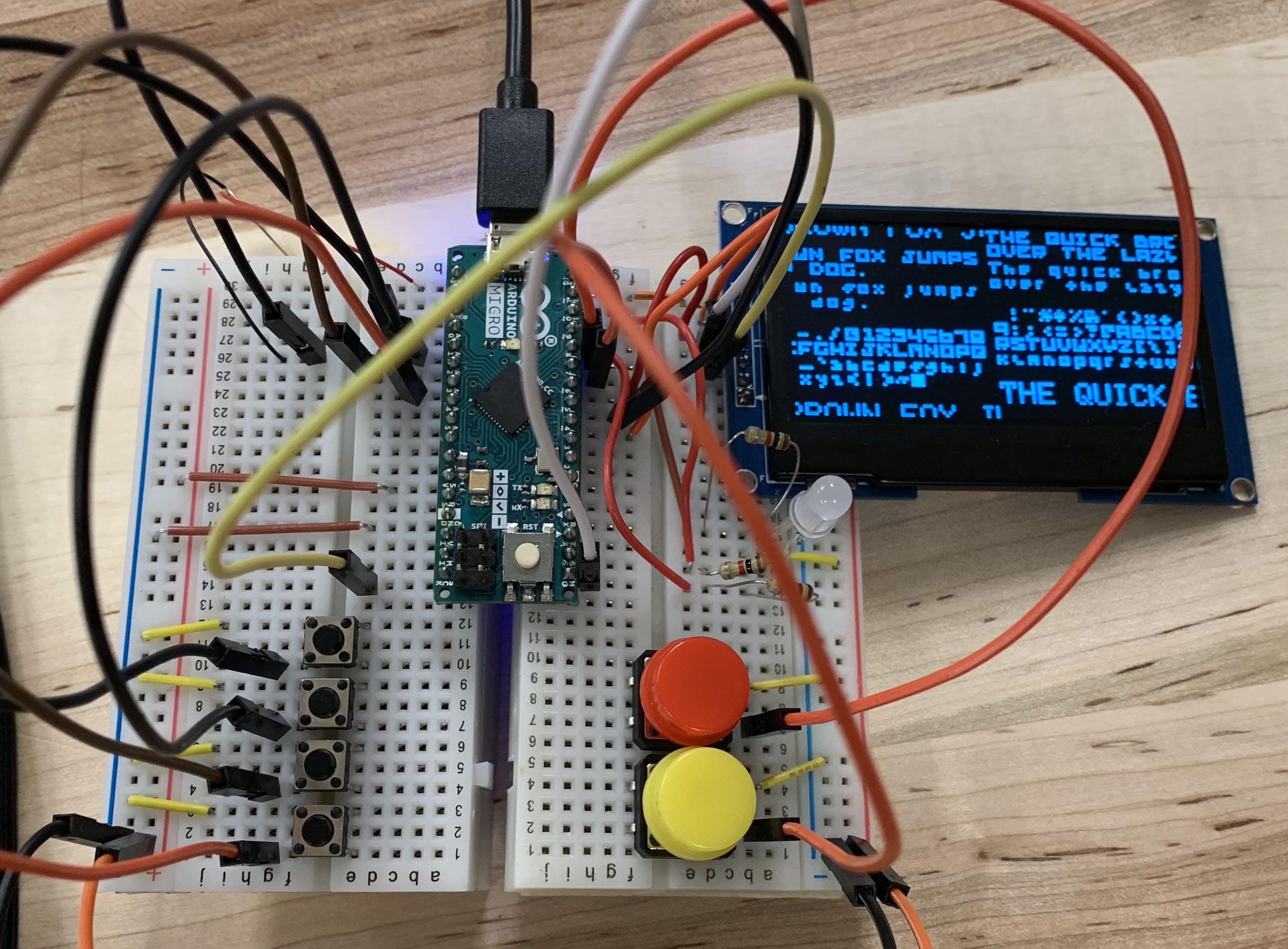

Breadboard attempt one... somethings up with the OLED. |

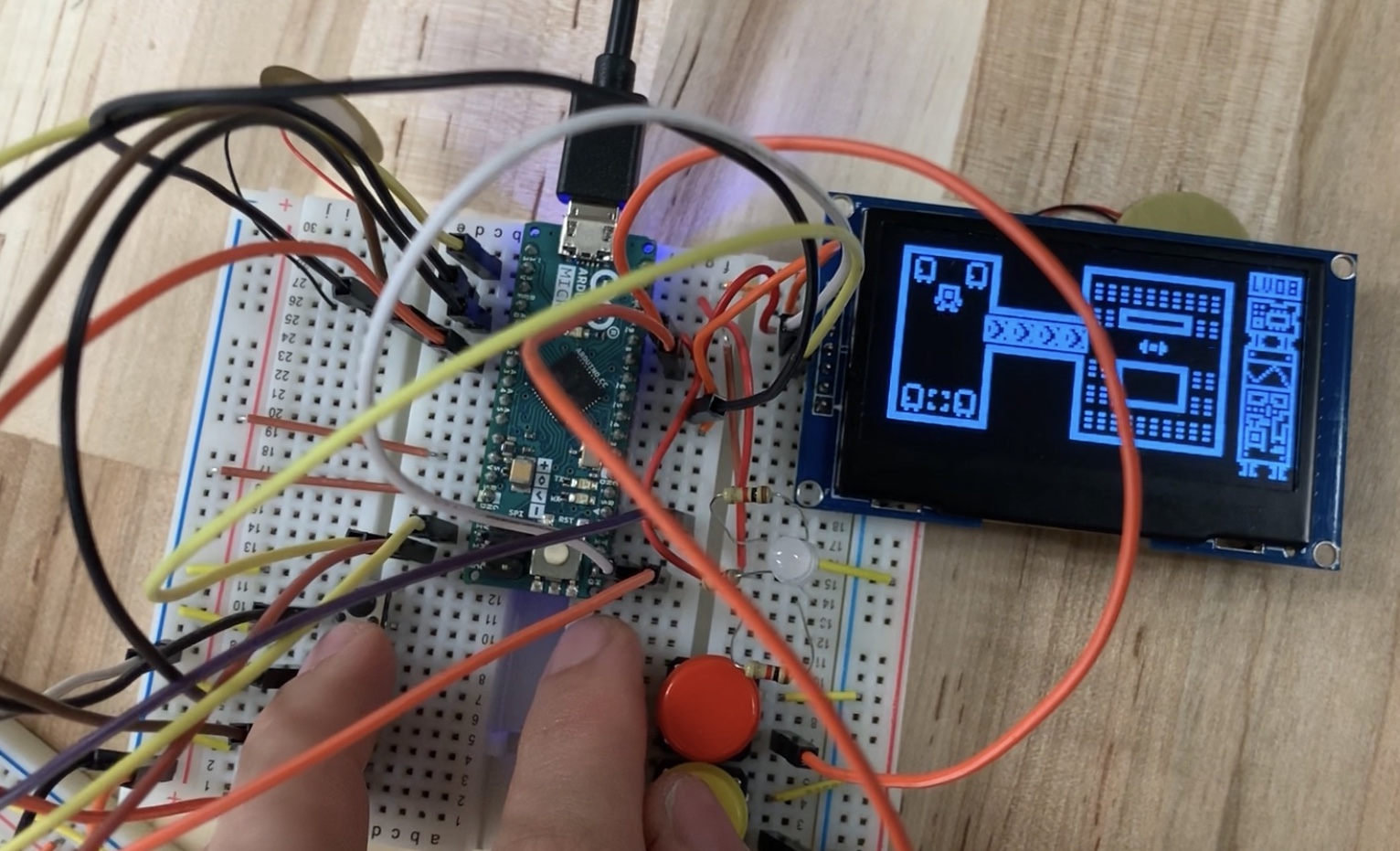

Now the screen works! |
PCB design and fabrication
After success with the breadboard version, I designed a PCB that fit into an Altoids tin that I could mill out myself. I used Autodesk Eagle to create the board layout and draw the traces. Then I milled out the two sided board on a Bantam Tools Desktop PCB Milling Machine. After milling the PCB, I soldered everything together, achieving functionality using the board I designed.
I also designed a small board to redirect the connections for the OLED screen, the faceplate that mounts the screen to the top of the Altoid tin, as well as a base to hold the battery underneath the tin.

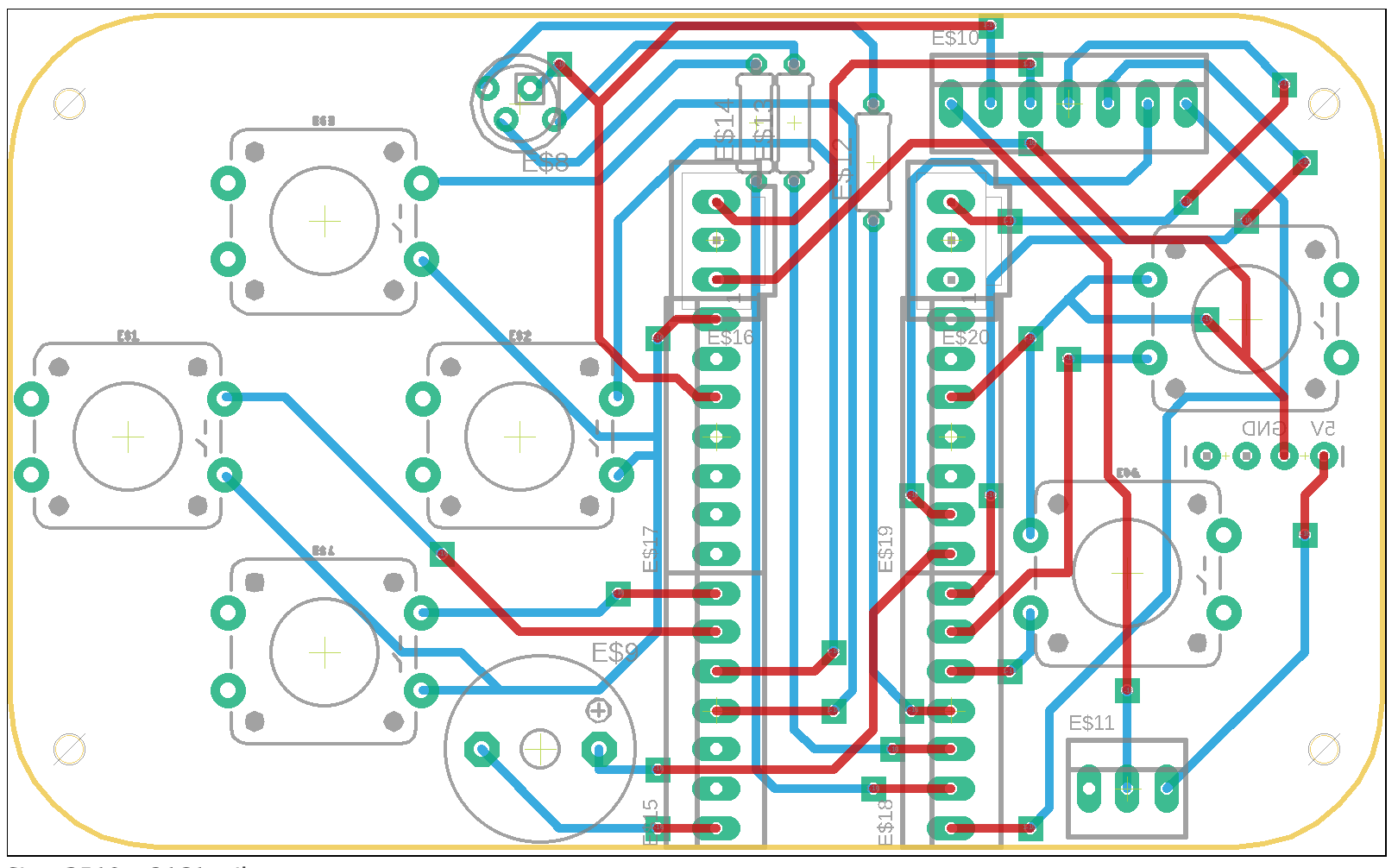

My PCB wiring schematic made in Autodesk Eagle. |

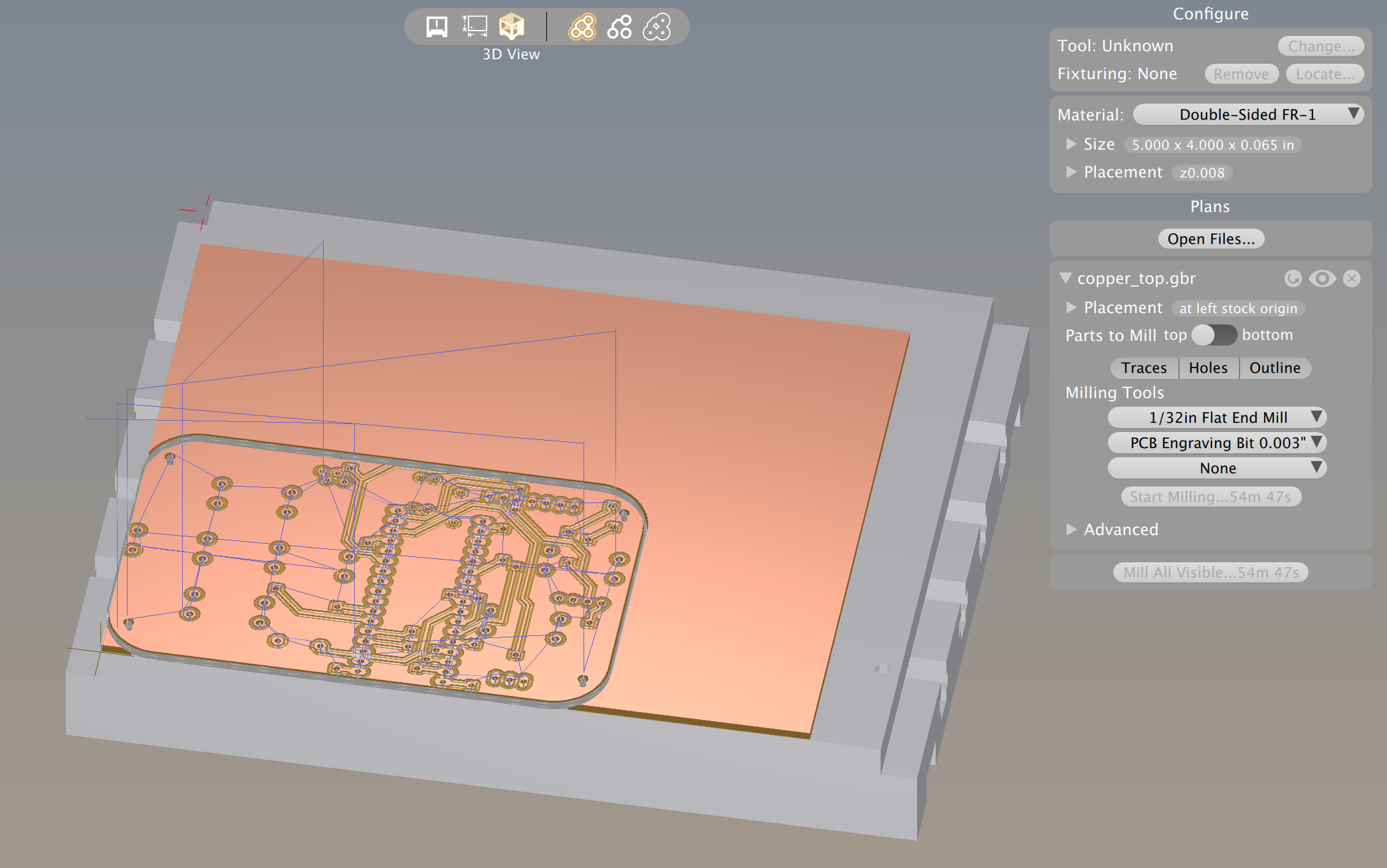

The PCB ready to be milled on the Bantam Tools software. |

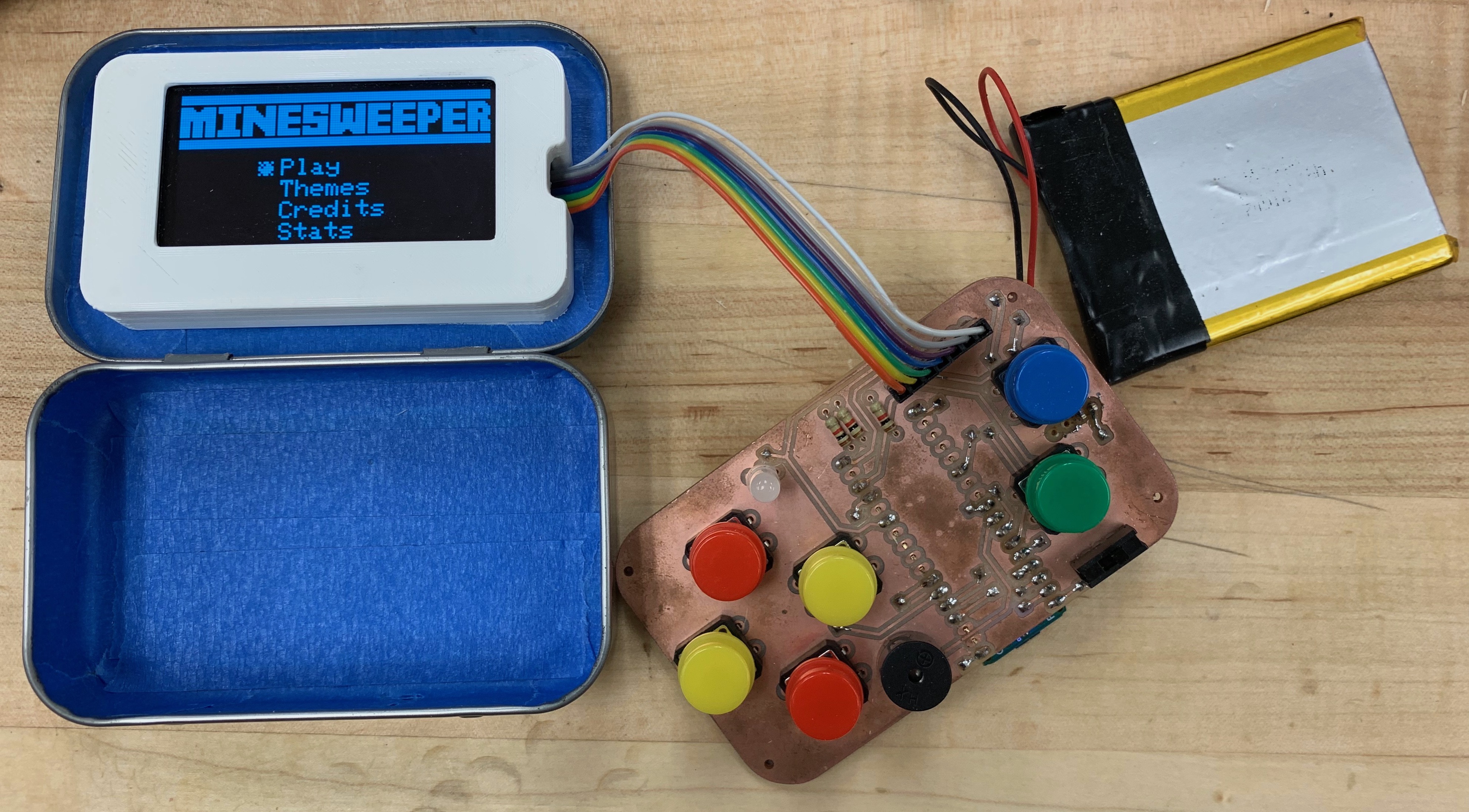

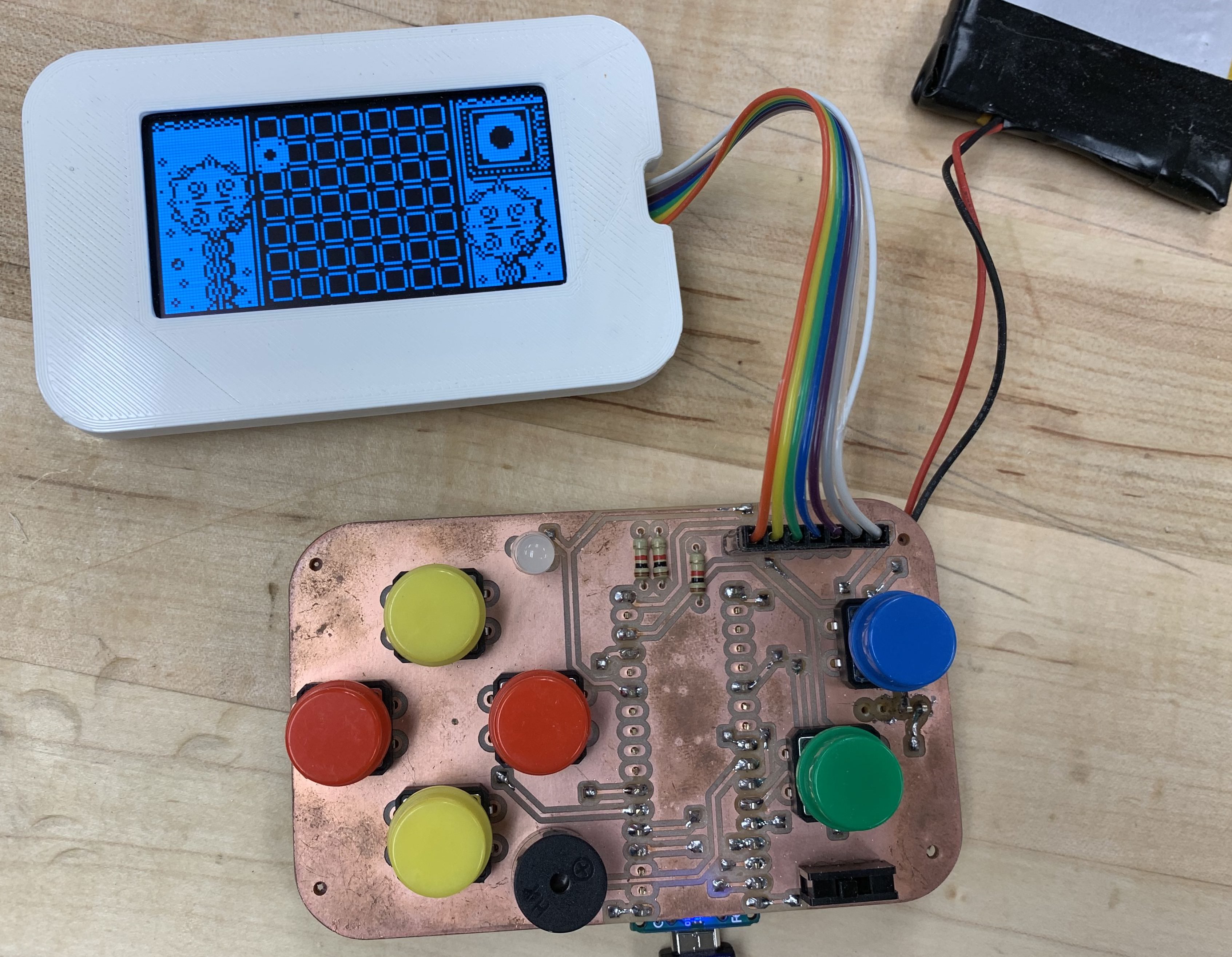

Now the screen has a case. |

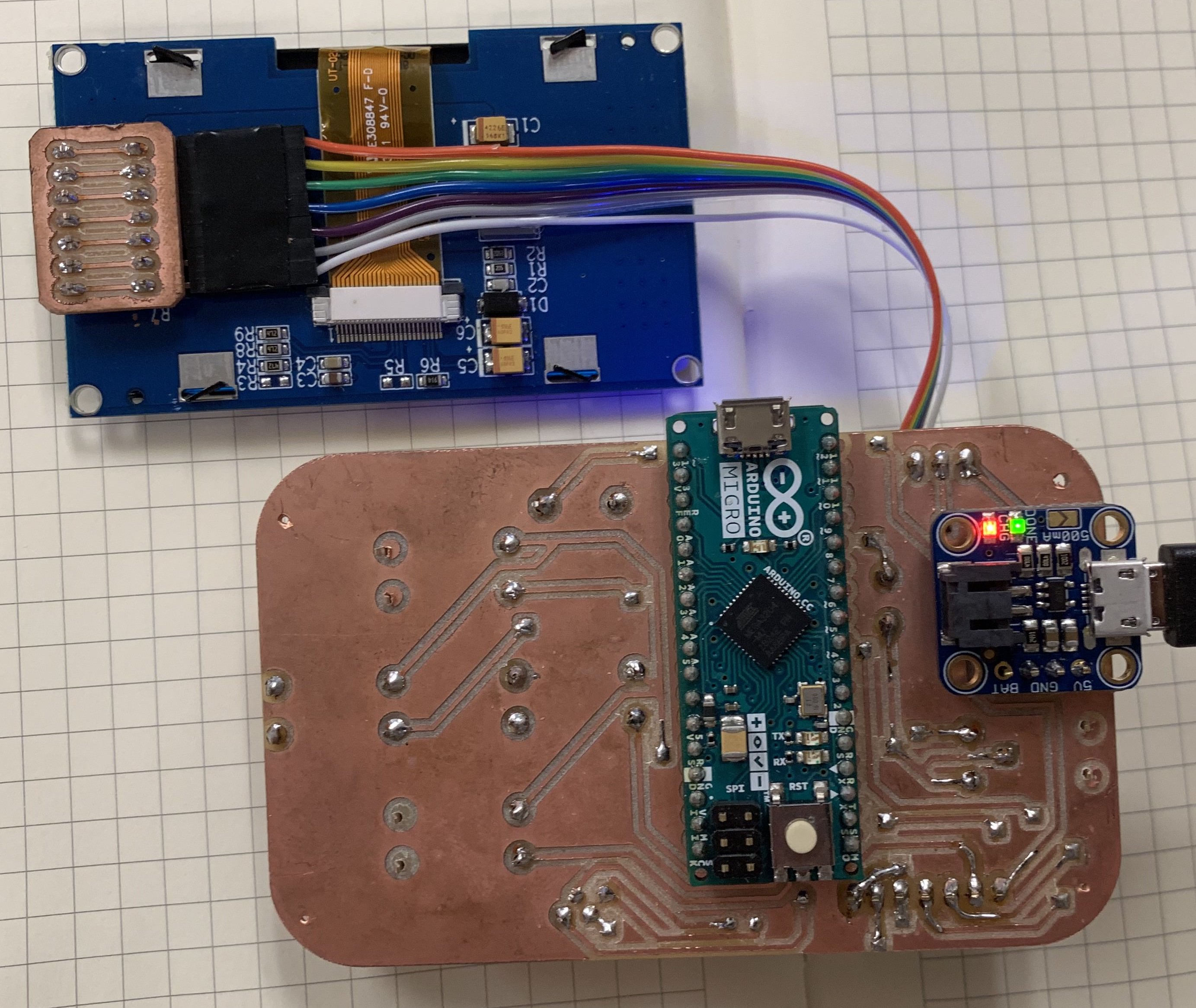

A view of the bottom. |
final touches
I had trouble fitting the entire board with the battery into the Altoids tin due to the size of components on the board. I ended up cutting out the bottom of the tin, and mounting the tin into a 3D printed base that holds the the battery. I also laser cut a cover to protect the circuit board out of acrylic. The project is functional, but one day I might come back to it so it actually fits into an unaltered Altoids tin.

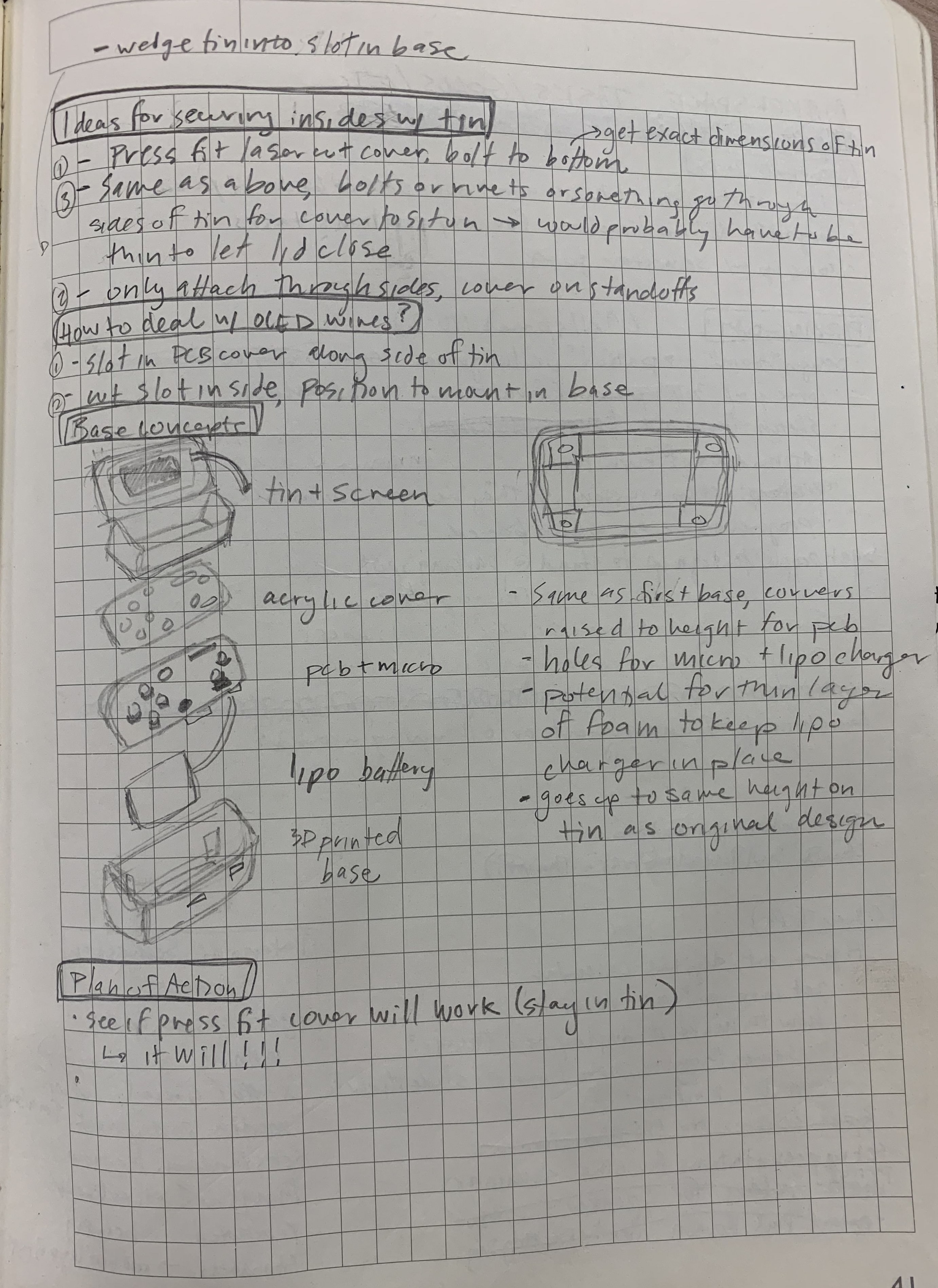

The plan to finish up the assembly. |

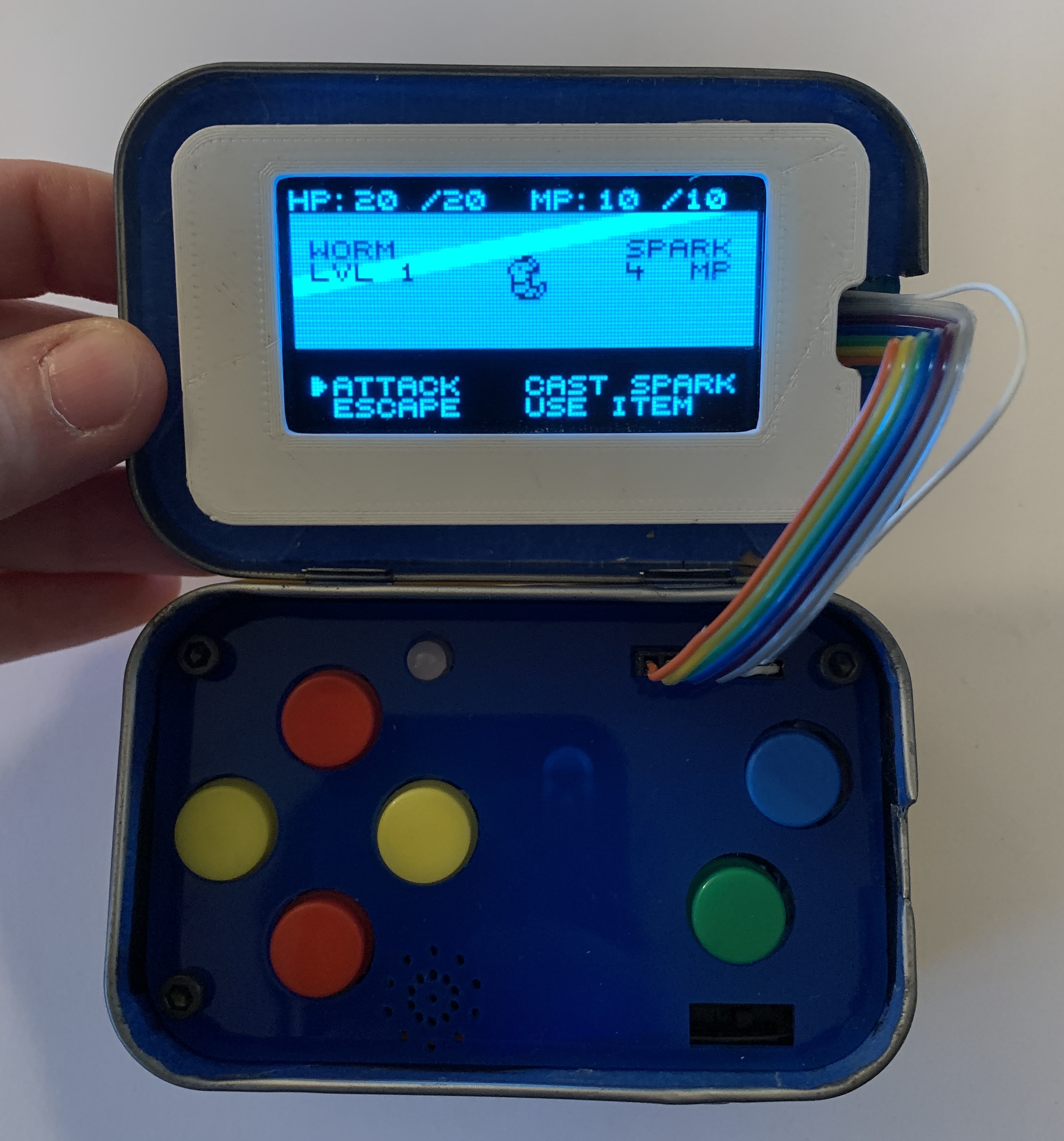

Here the screen's installed in the Altoids tin. |

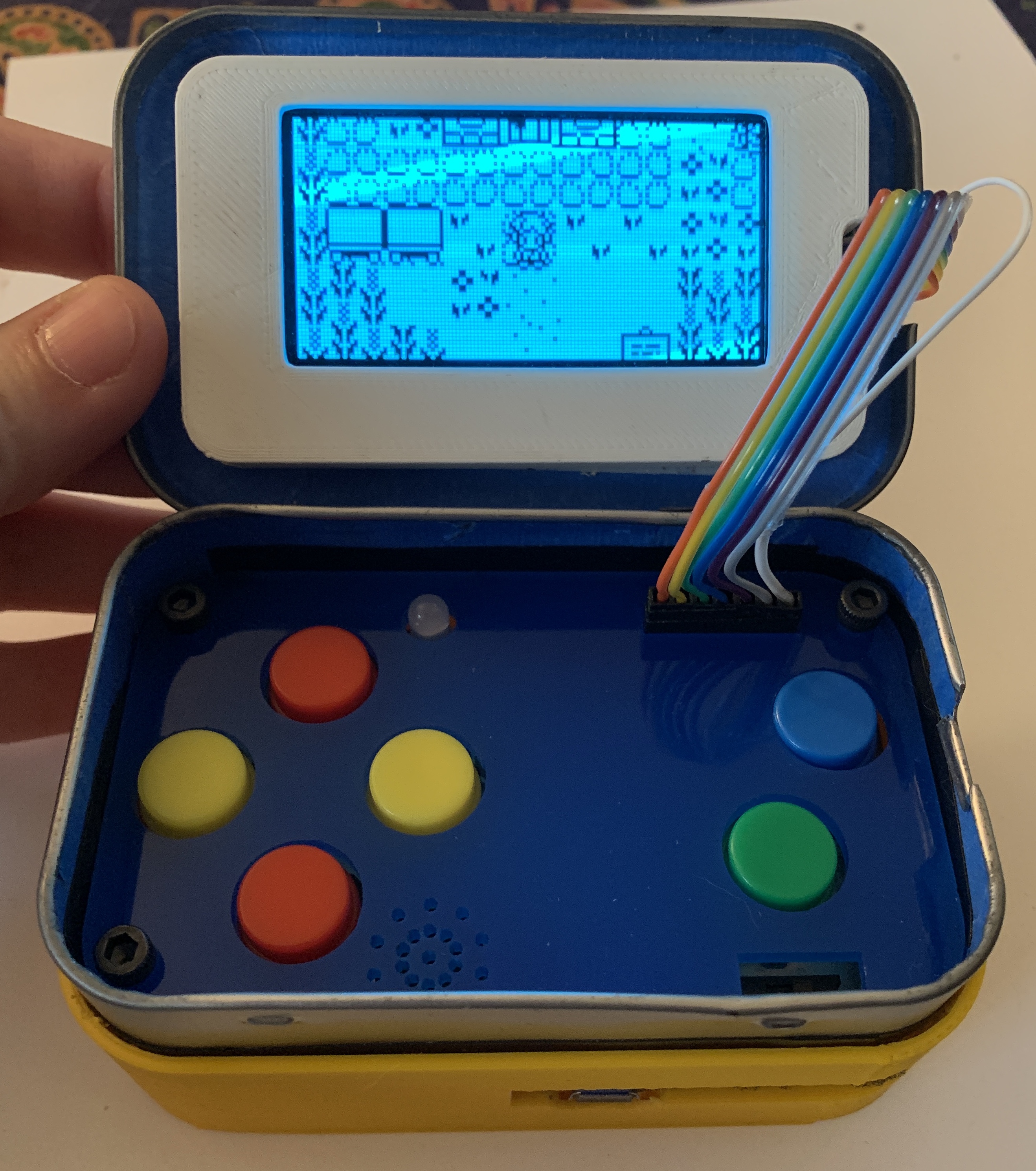

The altoidBoy with the circuit cover, sitting in the 3D printed base. |
